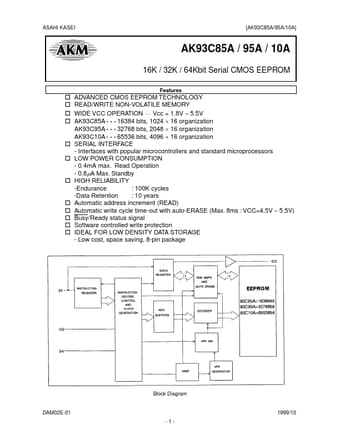

ASAHI KASEI
[AK93C85A/95A/10A]
AK93C85A / 95A / 10A
16K / 32K / 64Kbit Serial CMOS EEPROM
Features
ADVANCED CMOS EEPROM TECHNOLOGY
READ/WRITE NON-VOLATILE MEMORY
WIDE VCC OPERATION Vcc = 1.8V 5.5V
AK93C85A 16384 bits, 1024 16 organization
AK93C95A 32768 bits, 2048 16 organization
AK93C10A 65536 bits, 4096 16 organization
SERIAL INTERFACE
- Interfaces with popular microcontrollers and standard microprocessors
LOW POWER CONSUMPTION
- 0.4mA max. Read Operation
- 0.8A Max. Standby
HIGH RELIABILITY
-Endurance
: 100K cycles
-Data Retention : 10 years
Automatic address increment (READ)
Automatic write cycle time-out with auto-ERASE (Max. 8ms : VCC=4.5V 5.
