EW-562, EW-462 UNIPOLAR HALL EFFECT SWITCHE

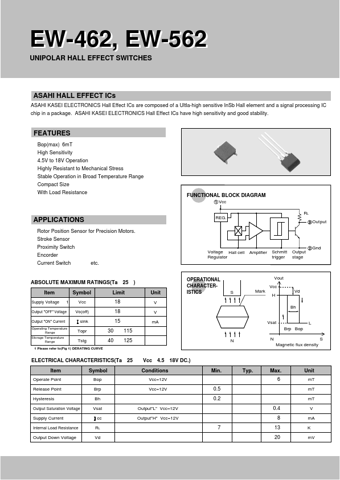

📥 Download Datasheet  Datasheet Preview Page 1

Description

EW-462, EW-562 UNIPOLAR HALL EFFECT SWITCHES ASAHI HALL EFFECT ICs ASAHI KASEI ELECTRONICS Hall Effect ICs are composed of a Ultla-high sensitive InS.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: EW-562, EW-462. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
EW-562, EW-462
Manufacturer
Asahi Kasei
File Size
22.22 KB
Datasheet
EW-462-AsahiKasei.pdf
Description
UNIPOLAR HALL EFFECT SWITCHE
Note
This datasheet PDF includes multiple part numbers: EW-562, EW-462.
Please refer to the document for exact specifications by model.

Applications

* ˔Rotor Position Sensor for Precision Motors. ˔Stroke Sensor ˔Proximity Switch ˔Encorder ˔Current Switch etc. FUNCTIONAL BLOCK DIAGRAM ɹVcc REG. RL ɹOut put ɹGnd Voltage Hall cell Amplifier Schmitt Output Regulator trigger stage ABSOLUTE MAXIMUM RATINGS(Taʹ25ˆ) Itemɹ Symbol Lim
