AEH60

250 Watts

AEH60 Features

* High efficiency, 3.3V@91% (Typical)

* -40°C to 100°C baseplate operating temperature

* Open Frame version also available (ALH60)

* Positive and Negative enable function

* Low output ripple and noise

* High capacitive load limit on start-up

AEH60 Datasheet (531.83 KB)

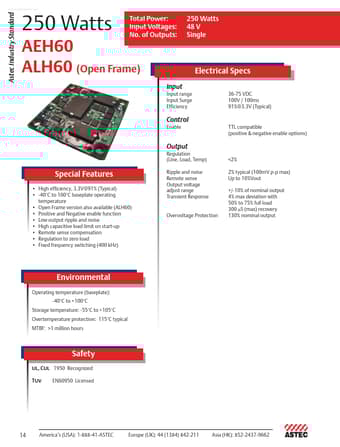

Preview of AEH60 PDF

Datasheet Details

Part number:

AEH60

Manufacturer:

Astec America

File Size:

531.83 KB

Description:

250 watts.
www.DataSheet4U.com Astec Industry Standard 250 Watts High Efficiency PRELIMINARY AEH60 ALH60 (Open Frame) Total Power: Input Voltages: No. of Out.
