AEH60G48

DC-DC / Industry Standard Isolated Half Brick

AEH60G48 Features

* High efficiency, 3.3V@ 91% (Typical) Baseplate (AEH) or Open frame (ALH) design Low output ripple and noise High capacitive load limit on start-up Remote sense compensation Regulation to zero load Fixed frequency switchi

AEH60G48 Datasheet (1.42 MB)

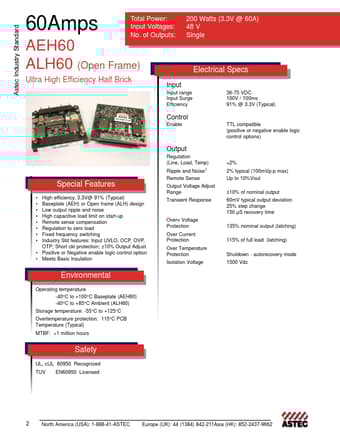

Preview of AEH60G48 PDF

Datasheet Details

Part number:

AEH60G48

Manufacturer:

Emerson

File Size:

1.42 MB

Description:

Dc-dc / industry standard isolated half brick.
60Amps Total Power: Input Voltages: No. of Outputs: 200 Watts (3.3V @ 60A) 48 V Single AEH60 ALH60 (Open Frame) Ultra High Efficiency Half Brick In.
