AL60A-048L-050F20, AL60A Datasheet - Astec America

AL60A-048L-050F20 120 Watts

Astec Integrated Power www.DataSheet4U.com 120 Watts AL60A Total Power: Input Voltages: No. of Outputs: 120 Watts 12V, 24V or 48V Single, Dual Electrical Specs Input Input Range Efficiency 180 to 400 VDC or 36 to 72 VDC 83% typical (5V @ 20A); 85% typical (12V @ 9A) Output Load Regulation Line Regulation Noise/Ripple Remote sense Output Voltage Adjust Range Transient Response Current Share Accuracy Overvoltage Protection Current Limit 0.2% typical down to no load 0.1% typical 75 mV typical.

AL60A-048L-050F20 Features

* High efficiency - up to 86%

* 500 KHz fixed frequency

* 100°C baseplate operating temperature (with no derating)

* Low output ripple and noise

* Excellent transient response

* Safety isolated low voltage control and monitoring

* High reliabil

AL60A_AstecAmerica.pdf

This datasheet PDF includes multiple part numbers: AL60A-048L-050F20, AL60A. Please refer to the document for exact specifications by model.

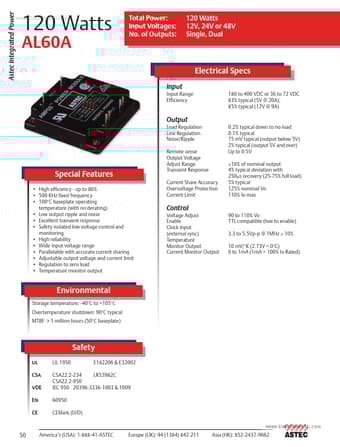

AL60A-048L-050F20 Datasheet Preview Page 2

Datasheet Details

Part number:

AL60A-048L-050F20, AL60A

Manufacturer:

Astec America

File Size:

869.31 KB

Description:

120 watts.

Note:

This datasheet PDF includes multiple part numbers: AL60A-048L-050F20, AL60A.
Please refer to the document for exact specifications by model.
