AL6G14 Datasheet, Inverter, AiT Semiconductor

AL6G14 Features

  • Inverter
  • Operating Voltage Range:1.65V to 5.5V
  • Low Power Consumption:1μA (Max.)
  • Operating Temperature Range: -40°C to +125°C
  • Input Accept Voltage to 5.5V

PDF File Details

Part number:

AL6G14

Manufacturer:

AiT Semiconductor

File Size:

702.51kb

Download:

📄 Datasheet

Description:

6-channel schmitt-trigger inverter. The AL6G14 6-channel Schmitt-trigger inverter is designed for 1.65V to 5.5V VCC operation. The AL6G14 device contains six inverters a

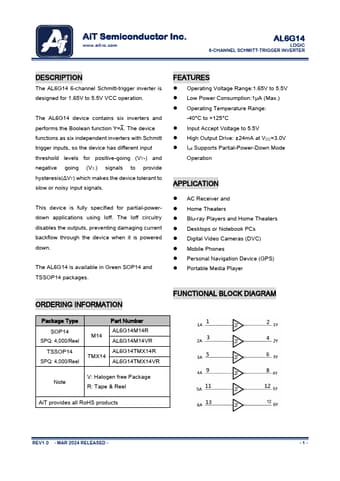

Datasheet Preview: AL6G14 📥 Download PDF (702.51kb)
Page 2 of AL6G14 Page 3 of AL6G14

AL6G14 Application

  • Applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. T

TAGS

AL6G14
6-CHANNEL
SCHMITT-TRIGGER
INVERTER
AiT Semiconductor
