ATSAMD20E14A-AU - SMART ARM-Based Microcontroller

Atmel

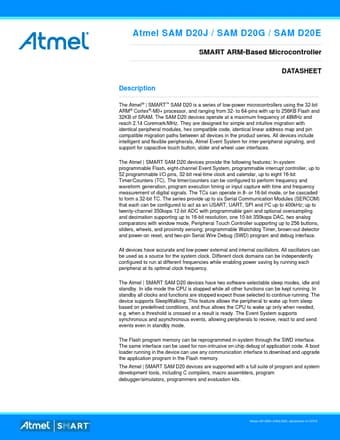

ATSAMD20E14A-AU Datasheet Preview — Preview of ATSAMD20E14A-AU PDF

Datasheet Details

Part number	ATSAMD20E14A-AU
Manufacturer	ATMEL ↗
File Size	4.21 MB
Description	SMART ARM-Based Microcontroller
Datasheet	ATSAMD20E14A-AU-Atmel.pdf

ATSAMD20E14A-AU Product details

Description

The Atmel® | SMART™ SAM D20 is a series of low-power microcontrollers using the 32-bit ARM® Cortex®-M0+ processor, and ranging from 32- to 64-pins with up to 256KB Flash and 32KB of SRAM.

Features

In-system programmable Flash, eight-channel Event System, programmable interrupt controller, up to 52 programmable I/O pins, 32-bit real-time clock and calendar, up to eight 16-bit Timer/Counters (TC). The timer/counters can be configured to perform frequency and waveform generation, program execution timing or input capture with time and frequency measurement of digital signals. The TCs can operate in 8- or 16-bit mode, or be cascaded to form a 32-bit TC. The series provide up to six Serial Co.
