ATSAMD20E14 - 32-bit Cortex-M0+ MCU

Microchip

📥 Download Datasheet

ATSAMD20E14 Datasheet Preview — Preview of ATSAMD20E14 PDF

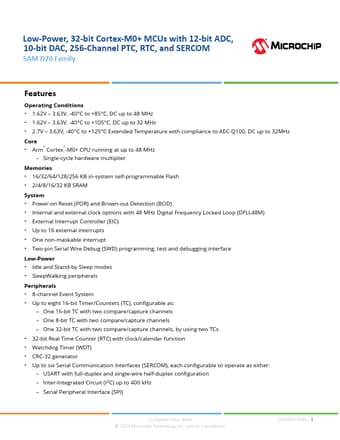

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	ATSAMD20E14
Manufacturer	Microchip ↗
File Size	7.02 MB
Description	32-bit Cortex-M0+ MCU
Datasheet	ATSAMD20E14-Microchip.pdf

ATSAMD20E14 Product details

Description

List21 6. I/O Multiplexing and Considerations 22 6.1. Multiplexed Signals 22 6.2. Other Functions 24 7. Power Supply and Start-Up Considerations

Features

Operating Conditions.
1.62V.
3.63V, -40°C to +85°C, DC up to 48 MHz.
1.62V.
3.63V, -40°C to +105°C, DC up to 32 MHz.
2.7V.
3.63V, -40°C to +125°C Extended Temperature with compliance to AEC-Q100, DC up to 32MHz Core.
Arm® Cortex®-M0+ CPU running at up to 48 MHz.
Single-cycle hardware multiplier Memories.
16/32/64/128/256 KB in-system self-programmable Flash.
2/4/8/16/32 KB SRAM System.
Power-on Res.
