AFBR-2409Z

50MBd Miniature Link Fiber Optic Receiver

AFBR-2409Z Features

* RoHS-compliant

* Works with Avago HFBR-14xxZ (820nm LED) and HFBR1712TZ (850nm VCSEL) transmitters

* Data transmission at signal rates from 100 kBd up to 50 MBd

* Receiver: Integrated PIN diode and digitalizing IC with CMOS/TTL output logic

* Up to 3 km

AFBR-2409Z General Description

The AFBR-24x9Z series components provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 3 km. The receivers are directly compatible with popular “industry-standard” connectors: ST® and SMA. They are de.

AFBR-2409Z Datasheet (330.64 KB)

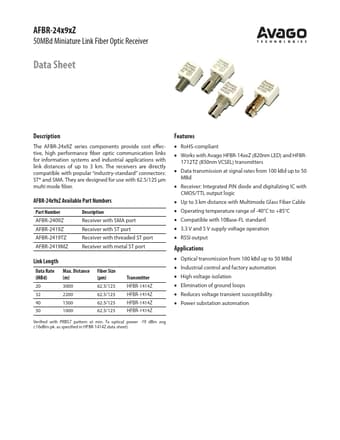

Preview of AFBR-2409Z PDF

Datasheet Details

Part number:

AFBR-2409Z

Manufacturer:

Avago

File Size:

330.64 KB

Description:

50mbd miniature link fiber optic receiver.
