ALM-11136 870 MHz - 915 MHz Low Noise High Linearity Amplifier

ALM-11136 Description

ALM-11136 870 MHz * 915 MHz Low Noise, High Linearity Amplifier Module with Fail-Safe Bypass .
Avago Technologies’ ALM-11136 is an easy-to-use GaAs MMIC Tower Mount Amplifier (TMA) LNA Module with low IL bypass path.

ALM-11136 Features

*  Very Low Noise Figure
*  Low Bypass IL
*  Good Return Loss
*  Fail-safe Bypass mode
*  High linearity performance
*  High isolation @LNA mode
*  Flat gain
*  GaAs E-pHEMT Technology
*  Single 5 V power supply
*  Compact MCOB package 7.0 x 10.0 x 1.5 mm3

ALM-11136 Applications

* Tower Mount Amplifier (TMA)
* Cellular Infrastructure Attention: Observe precautions for handling electrostatic sensitive devices. ESD Machine Model = 350 V ESD Human Body Model = 1500 V Refer to Avago Application Note A004R: Electrostatic Discharge, Damage and Control. Absolute Maximum R

📥 Download Datasheet

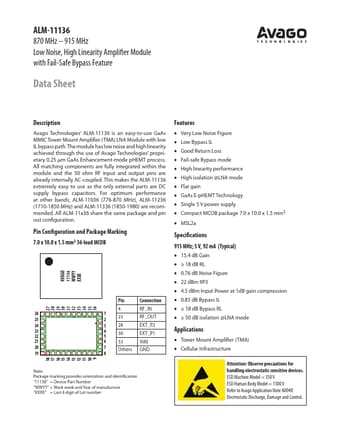

Preview of ALM-11136 PDF
