ALM-11236 Amplifier

ALM-11236 Description

ALM-11236 1710 MHz * 1850 MHz Low Noise, High Linearity Amplifier Module with Fail-Safe Bypass .
Avago Technologies’ ALM-11236 is an easy-to-use GaAs MMIC Tower Mount Amplifier (TMA) LNA Module with low IL bypass path.

ALM-11236 Features

* Very Low Noise Figure
* Low Bypass IL
* Good Return Loss
* Fail-safe Bypass mode
* High linearity performance
* High isolation @LNA mode
* Flat gain
* GaAs E-pHEMT Technology
* Single 5 V power supply
* Compa

ALM-11236 Applications

* Tower Mount Amplifier (TMA)
* Cellular Infrastructure Attention: Observe precautions for handling electrostatic sensitive devices. ESD Machine Model = 300 V ESD Human Body Model = 2000 V Refer to Avago Application Note A004R: Electrostatic Discharge, Damage and Control. Note: Pa

📥 Download Datasheet

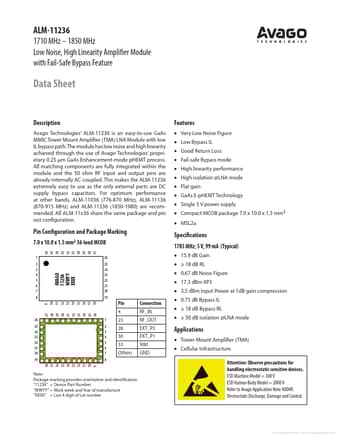

Preview of ALM-11236 PDF
