ALM2402F-Q1 Automotive Dual Operational Amplifier

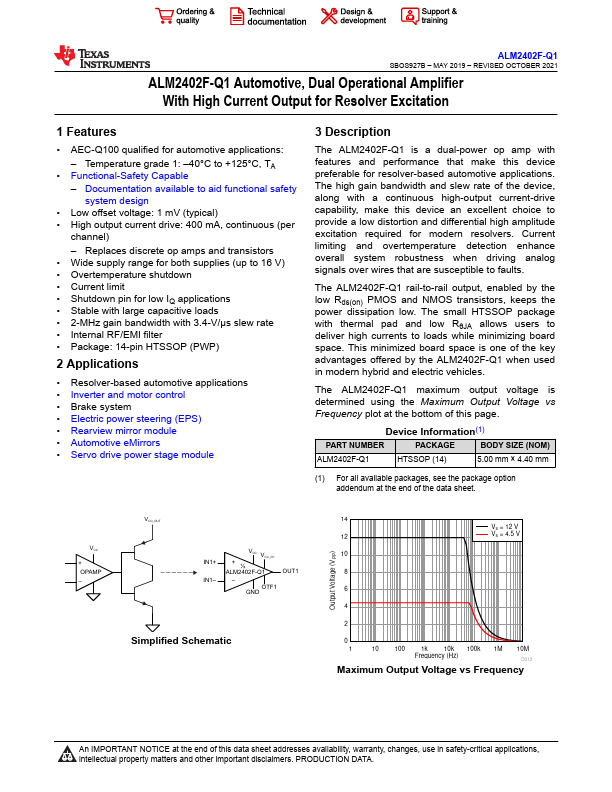

📥 Download Datasheet Datasheet Preview Page 1

Description

ALM2402F-Q1 SBOS927B * MAY 2019 * REVISED OCTOBER 2021 ALM2402F-Q1 Automotive, Dual Operational Amplifier With High Current Output for.
The ALM2402F-Q1 is a dual-power op amp with features and performance that make this device preferable for resolver-based automotive applications.

📥 Download Datasheet

Preview of ALM2402F-Q1 PDF

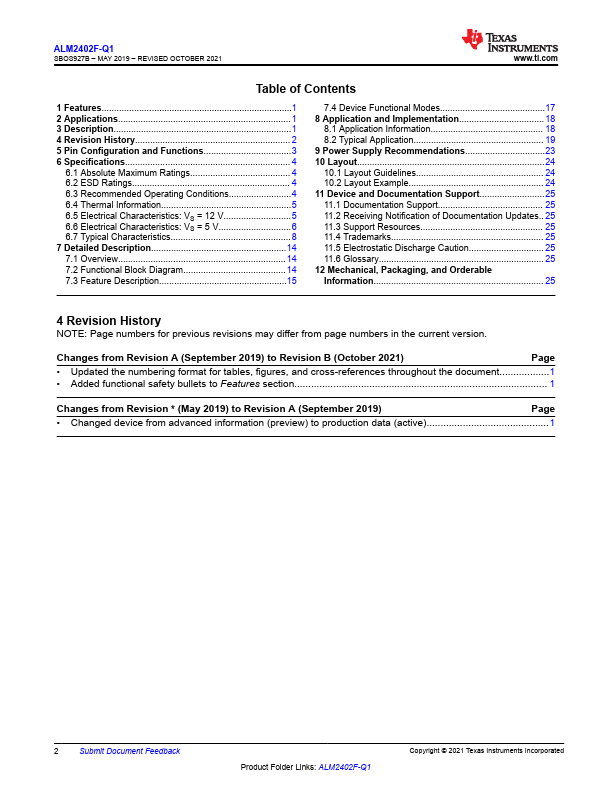

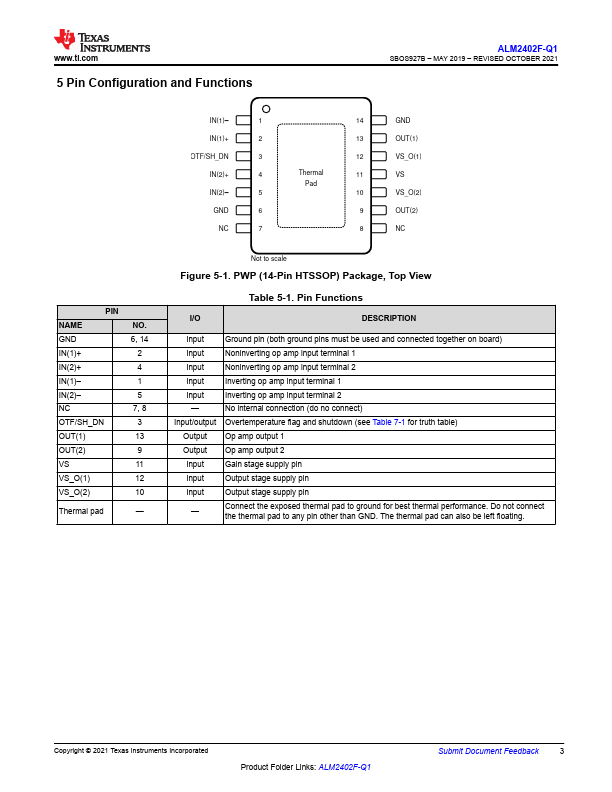

datasheet Preview Page 2 datasheet Preview Page 3

Applications

* Temperature grade 1:
* 40°C to +125°C, TA
* Functional-Safety Capable
* Documentation available to aid functional safety system design
* Low offset voltage: 1 mV (typical)
* High output current drive: 400 mA, continuous (per channel)
* Replac
