ASMT-M006 Datasheet - Avago

ASMT-M006, Collimator Lens Option

ASMT-M0xx Collimator Lens Option for Power LED ASMT-Mxxx Data Sheet Introduction .

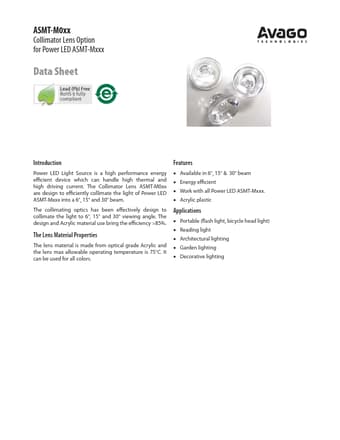

datasheet Preview Page 1 from Datasheet4u.com

ASMT-M006-Avago.pdf

ASMT-M006 Datasheet Preview — Preview of ASMT-M006 PDF

Datasheet Details

Part number:

ASMT-M006

Manufacturer:

Avago

File Size:

114.49 KB

Description:

Collimator Lens Option

Features

* Power LED Light Source is a high performance energy eﬃcient device which can handle high thermal and high driving current. The Collimator Lens ASMT-M0xx are design to eﬃciently collimate the light of Power LED ASMT-Mxxx into a 6°, 15° and 30° beam. x Available in 6°, 15° & 30° beam x Energy eﬃcien

Applications

* x Portable (ﬂash light, bicycle head light) x Reading light x Architectural lighting x Garden lighting x Decorative lighting Collimator Lens Dimension ASMT-M006 (6° beam) ASMT-M015 (15° beam) Relative Intensity Relative Intensity Radiation Pattern 1 0.9 0.8 0.7 0.6 0.5 0.4 0.3 0.2 0.1 0 -90 -70
