ASMT-MA00-AGH00 1W Power LED Light Source

The MoonstoneTM 1W Power LED Light Source is a high performance energy efficient device which can handle high thermal and high driving current. The exposed pad design has excellent heat transfer from the package to the motherboard. The Cool White Power LED is available in various color temperature r.

ASMT-MA00-AGH00 Features

* Available in Red, Amber, Green, Blue, Cool White and Warm White color

* Energy efficient

* Exposed pad for excellent heat transfer

* Suitable for reflow soldering process

* High current operation

* Long operation life

* Wide viewing an

ASMT-MG00-Avago.pdf

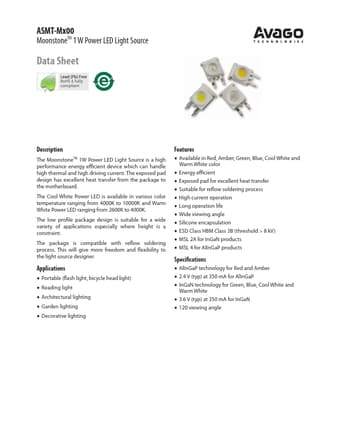

ASMT-MA00-AGH00 Datasheet Preview — This datasheet PDF includes multiple part numbers: ASMT-MA00-AGH00, ASMT-MG00. Please refer to the document for exact specifications by model.

ASMT-MA00-AGH00 Datasheet Preview Page 2

ASMT-MA00-AGH00 Datasheet Preview Page 3

Datasheet Details

Part number:

ASMT-MA00-AGH00, ASMT-MG00

Manufacturer:

Avago

File Size:

558.44 KB

Description:

1w power led light source.

Note:

This datasheet PDF includes multiple part numbers: ASMT-MA00-AGH00, ASMT-MG00.
Please refer to the document for exact specifications by model.
