HFBR-1414M - Miniature Fiber Optic Components

This page provides the datasheet information for the HFBR-1414M, a member of the HFBR-1402 Miniature Fiber Optic Components family.

Datasheet Summary

Description

The HFBR-0400 Series of components is designed to provide cost effective, high performance fiber optic communication links for information systems and industrial applications with link distances of up to 2.7 kilometers.

Features

Meets IEEE 802.3 Ethernet and 802.5 Token Ring Standards.
Low Cost Transmitters and Receivers.
Choice of ST®, SMA, SC or FC Ports.
820 nm Wavelength Technology.
Signal Rates up to 160 Megabaud.
Link Distances up to 2.7 km.
Specified with 50/125 µm, 62.5/125 µm, 100/140 µm, and 200 µm HCS® Fiber.
Repeatable ST Connections within 0.2 dB Typical.
Unique Optical Port Design for Efficient Coupling.
Auto-Inserta.

Datasheet Details

Part number	HFBR-1414M
Manufacturer	Avago
File Size	526.50 KB
Description	Miniature Fiber Optic Components
Datasheet	HFBR-1414M Datasheet

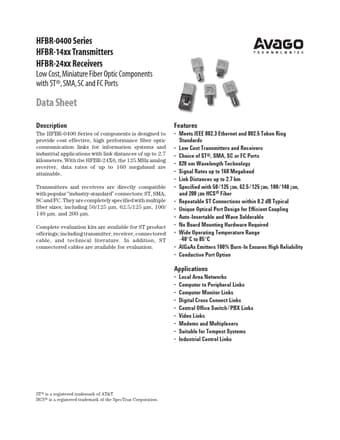

Additional preview pages of the HFBR-1414M datasheet.
