HLMP-0805 - 2 mm x 5 mm Rectangular Bicolor LED Lamps

This page provides the datasheet information for the HLMP-0805, a member of the HLMP-4000 2 mm x 5 mm Rectangular Bicolor LED Lamps family.

Datasheet Summary

Description

The T-1 3/4 HLMP-40xx and 2 mm by 5 mm rectangular HLMP-08xx are three leaded bicolor light sources designed for a variety of applications where dual state illumination is required in the same package.

There are two LED chips, mounted on a central common cathode lead for maximum on-axis viewability.

Features

  • Two color operation.
  • Three leads with one common cathode.
  • Option of straight or spread leads configuration Selection Guide Package T-1 3/4 Rectangular Part Number HLMP-4000 HLMP-4000#xxx HLMP-4015 HLMP-0800 HLMP-0805 Color Green/HER Green/Yellow Green/HER Green/Yellow Package lens Non tinted, diffused Non tinted, non-diffused Non tinted, diffused Non tinted, diffused Min. Luminous Intensity Iv (mcd) Green Red Yellow 4.2 2.1 4.2 2.1 20.0 20 2.6 2.1 2.6 1.4.

📥 Download Datasheet

Datasheet preview – HLMP-0805

Datasheet Details

Part number HLMP-0805
Manufacturer Avago
File Size 290.51 KB
Description 2 mm x 5 mm Rectangular Bicolor LED Lamps
Datasheet download datasheet HLMP-0805 Datasheet
Additional preview pages of the HLMP-0805 datasheet.

📁 Similar Datasheet

Other Datasheets by Avago

Full PDF Text Transcription

Click to expand full text

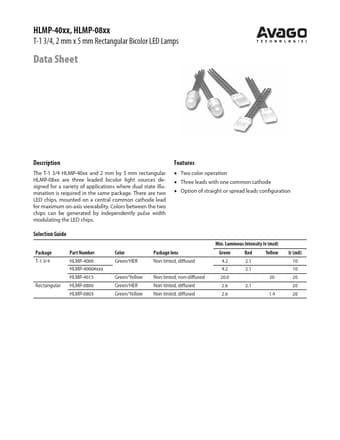

HLMP-40xx, HLMP-08xx T-1 3/4, 2 mm x 5 mm Rectangular Bicolor LED Lamps Data Sheet Description The T-1 3/4 HLMP-40xx and 2 mm by 5 mm rectangular HLMP-08xx are three leaded bicolor light sources designed for a variety of applications where dual state illumination is required in the same package. There are two LED chips, mounted on a central common cathode lead for maximum on-axis viewability. Colors between the two chips can be generated by independently pulse width modulating the LED chips.
Published: |
