HLMP-0503, HLMP-R100 - LED Lamps

The HLMP-0503 by HP is a LED Lamps. Below is the official datasheet preview.

Datasheet Details

Part number	HLMP-0503, HLMP-R100
Manufacturer	HP
File Size	141.23 KB
Description	LED Lamps
Datasheet	HLMP-R100-HP.pdf
Note	This datasheet PDF includes multiple part numbers: HLMP-0503, HLMP-R100. Please refer to the document for exact specifications by model.

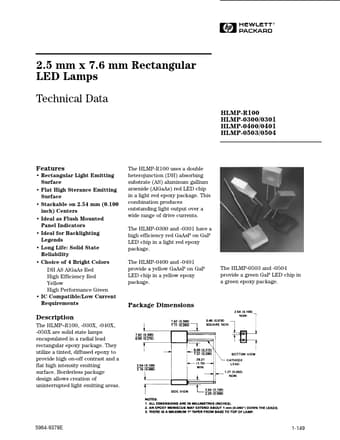

Additional preview pages of the HLMP-0503 datasheet.

The HLMP R100, -030X, -040X, -050X are solid state lamps encapsulated in a radial lead rectangular epoxy package.

Rectangular Light Emitting Surface.
Flat High Sterance Emitting Surface.
Stackable on 2.54 mm (0.100 inch) Centers.
Ideal as Flush Mounted Panel Indicators.
Ideal for Backlighting Legends.
Long Life: Solid State Reliability.
Choice of 4 Bright Colors DH AS AlGaAs Red High Efficiency Red Yellow High Performance Green.
IC Compatible/Low Current Requirements.
