CTO-565, CTO565 High Efficiency 1W Amplifier

Avantek

Description

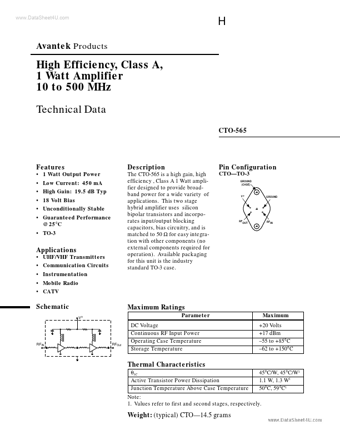

www.DataSheet4U.com H Avantek Products High Efficiency, Class A, 1 Watt Amplifier 10 to 500 MHz Technical Data CTO-565 .
The CTO-565 is a high gain, high efficiency , Class A 1 Watt amplifier designed to provide broadband power for a wide variety of applications.

📥 Download Datasheet

CTO-565 Datasheet Preview — This datasheet PDF includes multiple part numbers: CTO-565, CTO565. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: CTO-565, CTO565
Manufacturer: Avantek
File Size: 62.19 KB
Datasheet: CTO565_Avantek.pdf
Description: High Efficiency 1W Amplifier
Note: This datasheet PDF includes multiple part numbers: CTO-565, CTO565.
Please refer to the document for exact specifications by model.

Features

* 1 Watt Output Power
* Low Current: 450 mA
* High Gain: 19.5 dB Typ
* 18 Volt Bias
* Unconditionally Stable
* Guaranteed Performance @ 25°C

Applications

* This two stage hybrid amplifier uses silicon bipolar transistors and incorporates input/output blocking capacitors, bias circuitry, and is matched to 50 Ω for easy integration with other components (no external components required for operation). Available packaging for this unit is the industry st
