CTO565

High Efficiency 1W Amplifier

Avantek

CTO565 Features

* 1 Watt Output Power

* Low Current: 450 mA

* High Gain: 19.5 dB Typ

* 18 Volt Bias

* Unconditionally Stable

* Guaranteed Performance @ 25°C

* TO-3 Description The CTO-565 is a high gain, high efficiency , Class A 1 Watt amplifier designed to

CTO565 General Description

The CTO-565 is a high gain, high efficiency , Class A 1 Watt amplifier designed to provide broadband power for a wide variety of applications. This two stage hybrid amplifier uses silicon bipolar transistors and incorporates input/output blocking capacitors, bias circuitry, and is matched to 50 Ω fo.

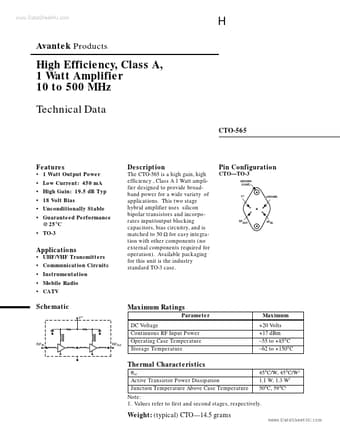

CTO565 Datasheet (62.19 KB)

CTO565 Datasheet Preview — Preview of CTO565 PDF

Datasheet Details

Part number:

CTO565

Manufacturer:

Avantek

File Size:

62.19 KB

Description:

High efficiency 1w amplifier.
