AES-BCM4343W-M1-G Datasheet - Avnet

Bluetooth & BLE SoC

AES-BCM4343W-M1-G Features

* Based on integrated SIP device that includes: o Combo Wi-Fi & BT/BLE SoC (BCM4343W) o Host Application Processor (STM32F411)

* BCM4343W WLAN radio: o 2.4 GHz IEEE 802.11b/g/n(20), Channels 1-11 for USA and Canada

* BCM4343W Bluetooth radio: o Bluetooth® v4.1 (LE and Classic

AES-BCM4343W-M1-G General Description

The Avnet AES-BCM4343W-M1-G module is a high performance, Wi-Fi and Bluetooth/BLE combo module that includes a programmable ARM® Cortex™ M4 microprocessor for running user application code. The module is ideal for low-power Internet of Things (IoT) enabled sensor and actuator based devices that need.

AES-BCM4343W-M1-G Datasheet (1.89 MB)

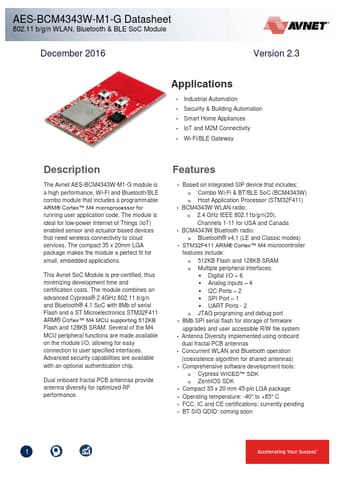

Preview of AES-BCM4343W-M1-G PDF

Datasheet Details

Part number:

AES-BCM4343W-M1-G

Manufacturer:

Avnet

File Size:

1.89 MB

Description:

Bluetooth & ble soc.
AES-BCM4343W-M1-G Datasheet 802.11 b/g/n WLAN, Bluetooth & BLE SoC Module December 2016 Version 2.3 Applications Industrial Automation
