AES152296A00-2.66ENRS Datasheet - ORIENT DISPLAY

AES152296A00-2.66ENRS E-Paper LCD

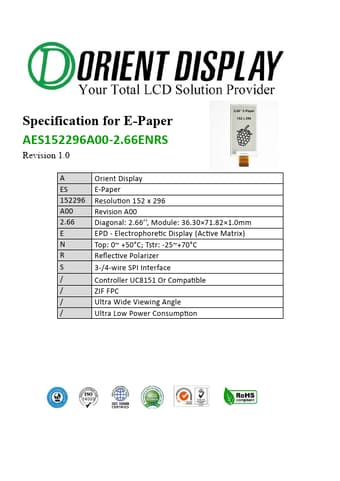

Specification for E-Paper AES152296A00-2.66ENRS Revision 1.0 A ES 152296 A00 2.66 E N R S / / / / Orient Display E-Paper Resolution 152 x 296 Revision A00 Diagonal: 2.66’’, Module: 36.30×71.82×1.0mm EPD - Electrophoretic Display (Active Matrix) Top: 0~ +50°C; Tstr: -25~+70°C Reflective Polarizer 3-/4-wire SPI Interface Controller UC8151 Or Compatible ZIF FPC Ultra Wide Viewing Angle Ultra Low Power Consumption REVISION HISTORY Rev Date Item Page 1.0 SEP.19.2019 New Creation ALL Remark .

AES152296A00-2.66ENRS Features

* br>

AES152296A00-2.66ENRS-ORIENTDISPLAY.pdf

Preview of AES152296A00-2.66ENRS PDF

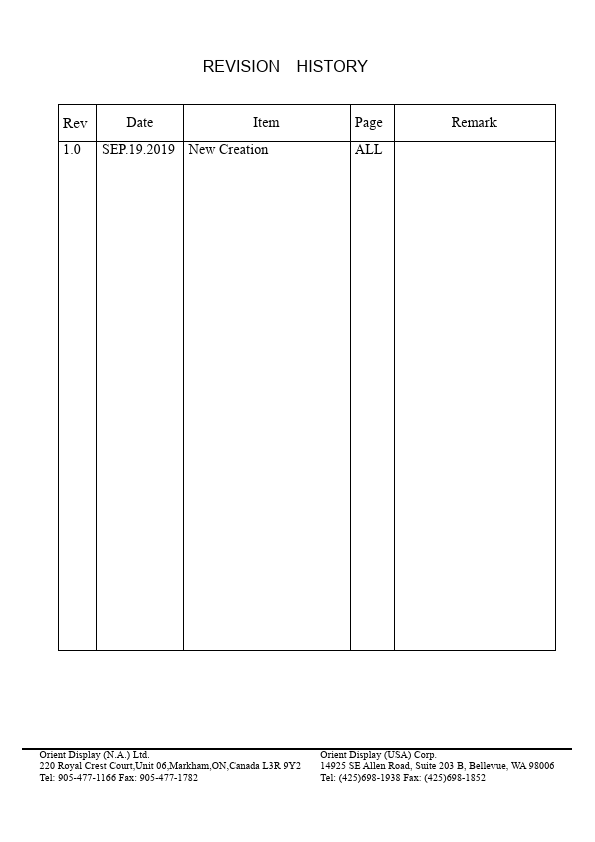

AES152296A00-2.66ENRS Datasheet Preview Page 2 AES152296A00-2.66ENRS Datasheet Preview Page 3

Datasheet Details

Part number:

AES152296A00-2.66ENRS

Manufacturer:

ORIENT DISPLAY

File Size:

1.65 MB

Description:

E-paper lcd.
