B2D20120HC1 Datasheet - BASiC Semiconductor

B2D20120HC1, SiC Schottky Diode

Product Summary VRRM 1200V IF (TC=150°C) 20 A * * QC 110 nC * * .
of Changes Release of the datasheet.

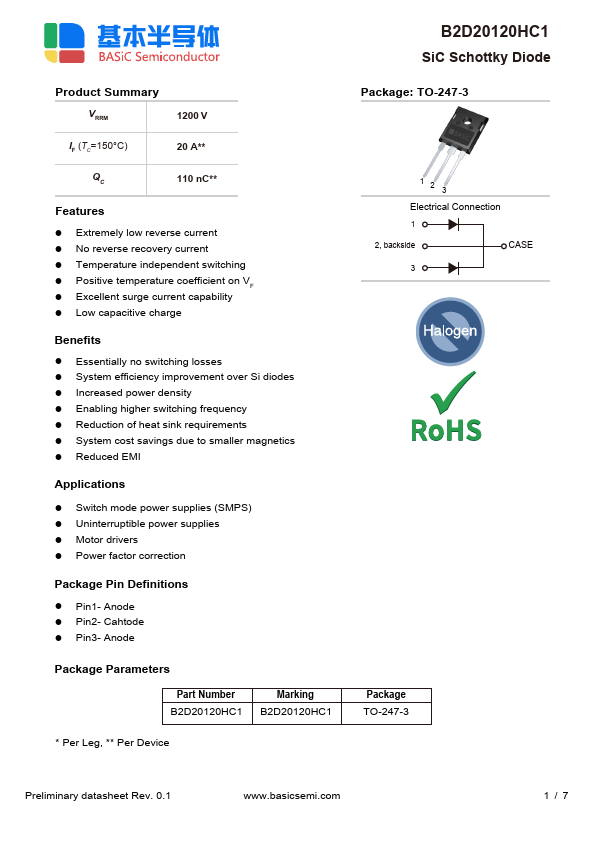

datasheet Preview Page 1 from Datasheet4u.com

B2D20120HC1-BASiCSemiconductor.pdf

B2D20120HC1 Datasheet Preview — Preview of B2D20120HC1 PDF

Datasheet Details

Part number:

B2D20120HC1

Manufacturer:

BASiC Semiconductor

File Size:

605.58 KB

Description:

SiC Schottky Diode

Features

* Extremely low reverse current
* No reverse recovery current
* Temperature independent switching
* Positive temperature coefficient on VF
* Excellent surge current capability
* Low capacitive charge Benefits
* Essentially no switching losses
* System efficiency impro

Applications

* Switch mode power supplies (SMPS)
* Uninterruptible power supplies
* Motor drivers
* Power factor correction Package Pin Definitions
* Pin1- Anode
* Pin2- Cahtode
* Pin3- Anode Package Parameters Part Number Marking B2D20120HC1 B2D20120HC1
* Per Leg,
