AP4300 - QUAD OP AMP AND VOLTAGE REFERENCE

Description

The AP4300 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies.

The device contains two operational amplifiers and a precision shunt regulator.

Features

  • increased precision with a corresponding reduction in system complexity and cost. The AP4300 is available in standard packages of DIP8 and SOIC-8. AP4300 Features Op Amp.
  • Input Offset Voltage: 0.5mV.
  • Supply Current: 250µA per Op Amp at 5.0V Supply Voltage.
  • Unity Gain Bandwidth: 1MHz.
  • Output Voltage Swing: 0 to (VCC-1.5) V.
  • Power Supply Range: 3 to 18V Voltage Reference.
  • Fixed Output Voltage Reference: 2.5V, 2.6V.
  • Voltage Tolerance: 0.5%, 1%.
  • Sink Curren.

📥 Download Datasheet

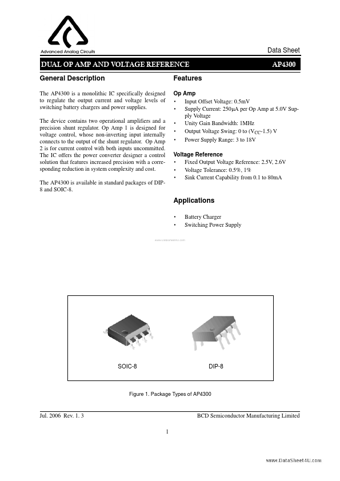

Datasheet preview – AP4300
