AP4302 Datasheet PDF (QUAD OP AMP AND VOLTAGE REFERENCE)

AP4302 - QUAD OP AMP AND VOLTAGE REFERENCE

Description

The AP4302 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies.

The device contains quad Op Amps and a 2.5V externally adjusted voltage reference in a 16-pin package.

Features

increased precision with a corresponding reduction in system complexity and cost. The AP4302 is available in standard packages of DIP16 and SOIC-16. AP4302 Features Op Amp.
Input Offset Voltage: 0.5mV.
Supply Current: 250µA per Op Amp at 5.0V Supply Voltage.
Unity Gain Bandwidth: 1MHz.
Output Voltage Swing: 0 to (VCC-1.5)V.
Power Supply Range: 3 to 18V Voltage Reference.
Reference Voltage Tolerance: 0.5%, 1%.
Sink Current Capability from 0.1 to 80mA.
Ou.

Datasheet Details

Part number	AP4302
Manufacturer	BCD Semiconductor
File Size	196.10 KB
Description	QUAD OP AMP AND VOLTAGE REFERENCE
Datasheet	AP4302 Datasheet

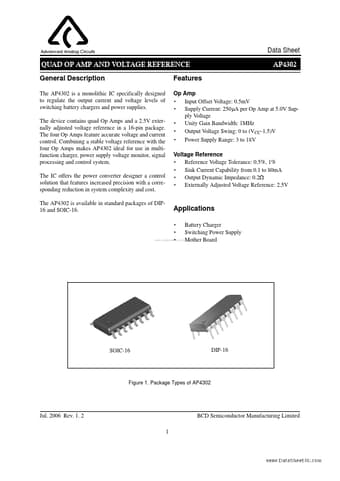

Additional preview pages of the AP4302 datasheet.

📁 Similar Datasheet

AP4305 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP4306 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP431 - ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes Incorporated)

AP431 - Adjustable Precision Shunt Regulator (Anachip)

AP4310A - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP4310E - DUAL OP AMP AND VOLTAGE REFERENCE (Diodes)

AP4312 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes Incorporated)

AP4312Q - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP4313 - CONSTANT VOLTAGE AND CONSTANT CURRENT CONTROLLER (Diodes)

AP431A - ADJUSTABLE PRECISION SHUNT REGULATOR (Diodes Incorporated)

Full PDF Text Transcription

Click to expand full text

Data Sheet QUAD OP AMP AND VOLTAGE REFERENCE General Description The AP4302 is a monolithic IC specifically designed to regulate the output current and voltage levels of switching battery chargers and power supplies. The device contains quad Op Amps and a 2.5V externally adjusted voltage reference in a 16-pin package. The four Op Amps feature accurate voltage and current control. Combining a stable voltage reference with the four Op Amps makes AP4302 ideal for use in multifunction charger, power supply voltage monitor, signal processing and control system. The IC offers the power converter designer a control solution that features increased precision with a corresponding reduction in system complexity and cost. The AP4302 is available in standard packages of DIP16 and SOIC-16.
