AP3211H 1.5A ASYNCHRONOUS DC-DC BUCK CONVERTER

The AP3211H is a 1.4MHz fixed frequency, current mode, PWM buck (step-down) DC-DC converter, capable of driving a 1.5A load with high efficiency, excellent line and load regulation. The device integrates N-channel power MOSFET switch with low on-resistance. Current mode control provides fast transie.

AP3211H Features

* Input Voltage Range: 4.5V to 23V

* Fixed 1.4MHz Frequency

* High Efficiency: up to 92%

* Output Current: 1.5A

* Current Mode Control

* Built-in Over Current Protection

* Built-in Thermal Shutdown Function

* Built-in UVL

AP3211H Datasheet (603.94 KB)

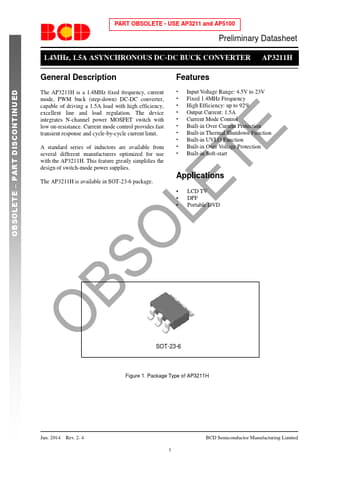

AP3211H Datasheet Preview — Preview of AP3211H PDF

Datasheet Details

Part number:

AP3211H

Manufacturer:

BCD

File Size:

603.94 KB

Description:

1.5a asynchronous dc-dc buck converter.
