AP3064 - Boost Type LED Driver

AP3064 Description

Preliminary Datasheet Boost Type LED Driver with 4-Channel Current Source AP3064 General .
The AP3064 is a high efficiency boost controller with 4-string current sources for driving WLED backlight.

AP3064 Features

* cycle-by-cycle current limit, soft-start, under voltage lockout (UVLO) protection, programmable OVP, over temperature protection (OTP), open/short LED protection, VOUT short/Schottky diode open protection and Schottky Diode short-circuit protection. The AP3064 is available in SOIC-16, PSOP-16, DIP-1

AP3064 Applications

* LCD Monitor
* LCD Display Module
* LCD TV SOIC-16 PSOP-16 DIP-16 QFN-4×4-16 Figure 1. Package Types of AP3064 Jul. 2012 Rev. 1. 5 BCD Semiconductor Manufacturing Limited 1 Preliminary Datasheet Boost Type LED Driver with 4-Channel Current Source AP3064 Pin Config

📥 Download Datasheet

Preview of AP3064 PDF

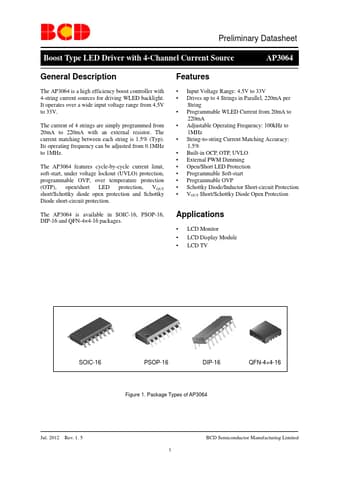

datasheet Preview Page 2 datasheet Preview Page 3
