AP3000C-11 - SILICON PIN DIODE

AP3000C-11 Description

AP3000C-11 SILICON PIN DIODE .
The AP3000C-11 is a Passivated Epitaxial Silicon PIN Diode Housed in a Hermetically Sealed Glass Package.

AP3000C-11 Applications

* Such as RF Switching, Phase Shifting, Modulation, Duplexing Limiting and Pulse Forming. PACKAGE STYLE 01 MAXIMUM RATINGS IC VCE PDISS TJ TSTG θJC O O 100 mA 300 V 250 mW @ TA = 25 C -65 C to +175 C -65 C to +175 C 20 C/W O O O O www. DataSheet4U. com NONE CHARACTERISTICS SYMBOL VB CJ CP LS RS TL

📥 Download Datasheet

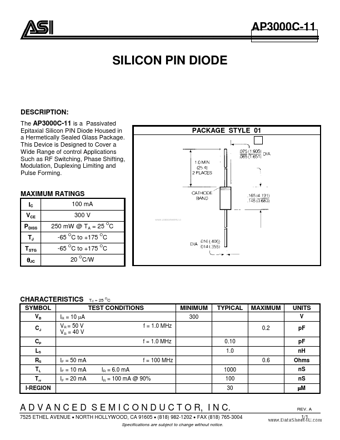

Preview of AP3000C-11 PDF

Datasheet Details

Part number
AP3000C-11
Manufacturer
ASI
File Size
40.27 KB
Datasheet
AP3000C-11_ASI.pdf
Description
SILICON PIN DIODE
