AP3005 Datasheet, Converter, BCD Semiconductor

AP3005 Features

  • Converter
  • 2A Constant Output Current
  • 130mΩ RDSON Internal Power MOSFET Switch
  • Up to 94% Efficiency
  • Fixed 420kHz Frequency
  • Wide 4.75V to 25V Input

PDF File Details

Part number:

AP3005

Manufacturer:

BCD Semiconductor

File Size:

324.63kb

Download:

📄 Datasheet

Description:

2a 420khz pwm buck dc-dc converter. The AP3005 is a 420kHz fixed frequency PWM buck (step-down) DC-DC converter, capable of driving a 2A load with high efficiency, low r

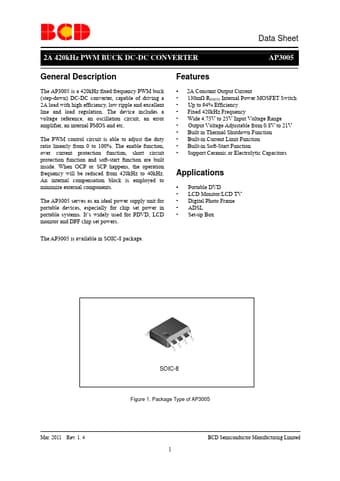

Datasheet Preview: AP3005 📥 Download PDF (324.63kb)
Page 2 of AP3005 Page 3 of AP3005

AP3005 Application

  • Applications
  • Portable DVD
  • LCD Monitor/LCD TV
  • Digital Photo Frame
  • ADSL
  • Set-up Box The AP3005 is av
