AP3002, AP3600 Datasheet - APTech

AP3002 1/4 INCH DIAPHRAGM VALVE

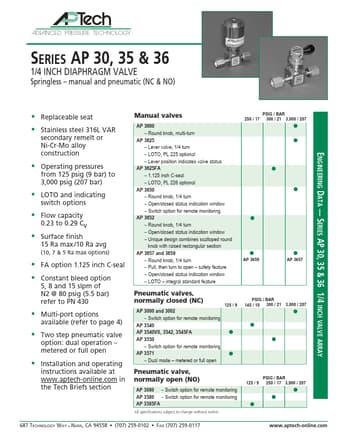

ADVANCED PRESSURE TECHNOLOGY Series AP 30, 35 & 36 1/4 INCH DIAPHRAGM VALVE Springless manual and pneumatic (NC & NO) Engineering Data Series AP 30, 35 & 36 1/4 inch valve array Replaceable seat Stainless steel 316L VAR secondary remelt or Ni-Cr-Mo alloy construction Operating pressures from 125 psig (9 bar) to 3,000 psig (207 bar) LOTO and indicating switch options Flow capacity 0.23 to 0.29 Cv Surface finis.

AP3600-APTech.pdf

This datasheet PDF includes multiple part numbers: AP3002, AP3600. Please refer to the document for exact specifications by model.
AP3002 Datasheet Preview Page 2 AP3002 Datasheet Preview Page 3

Datasheet Details

Part number:

AP3002, AP3600

Manufacturer:

APTech

File Size:

594.50 KB

Description:

1/4 inch diaphragm valve.

Note:

This datasheet PDF includes multiple part numbers: AP3002, AP3600.
Please refer to the document for exact specifications by model.
