AP300A-00 - SILICON PIN DIODE CHIP

AP300A-00 Description

AP300A-00 SILICON PIN DIODE CHIP NONE PACKAGE STYLE 01 .
The AP300A-00 is a Passivated Epitaxial Silicon PIN Diode Housed in a Hermetically Sealed Glass Package.

AP300A-00 Applications

* Such as RF Switching,Phase Shifting, Modulation, Duplexing Limiting and Pulse Forming. MAXIMUM RATINGS IF VR PDISS 100 mA 300 V 250 mW @ TA = 25 C O www. DataSheet4U. com CHARACTERISTICS SYMBOL VBR CJ RS TL Trr OR IR = 10 µA VR = 50 V VR = 40 V IF = 50 mA IF = 10 mA IF = 20 mA TC = 25 C O TEST C

📥 Download Datasheet

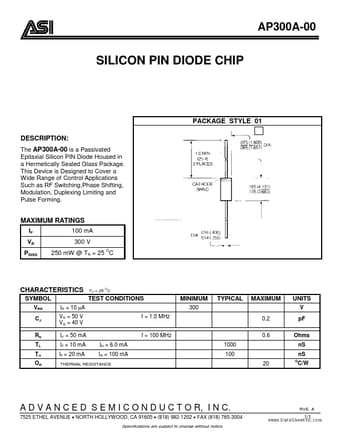

Preview of AP300A-00 PDF

Datasheet Details

Part number
AP300A-00
Manufacturer
ASI
File Size
44.04 KB
Datasheet
AP300A-00_ASI.pdf
Description
SILICON PIN DIODE CHIP
