AP3503F - 3A Synchronous DC-DC Buck Converter

BCD

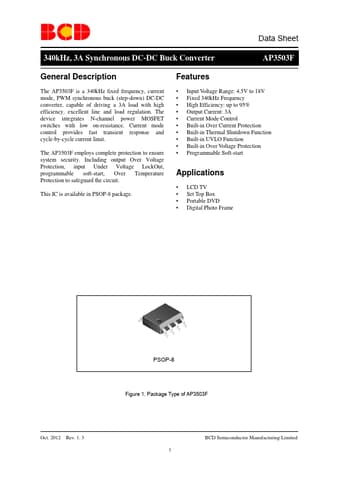

AP3503F Datasheet Preview — Preview of AP3503F PDF

Datasheet Details

Part number	AP3503F
Manufacturer	BCD
File Size	396.57 KB
Description	3A Synchronous DC-DC Buck Converter
Datasheet	AP3503F-BCD.pdf

AP3503F Product details

Description

The AP3503F is a 340kHz fixed frequency, current mode, PWM synchronous buck (step-down) DC-DC converter, capable of driving a 3A load with high efficiency, excellent line and load regulation.

Features

Input Voltage Range: 4.5V to 18V.
Fixed 340kHz Frequency.
High Efficiency: up to 95%.
Output Current: 3A.
Current Mode Control.
Built-in Over Current Protection.
Built-in Thermal Shutdown Function.
Built-in UVLO Function.
Built-in Over Voltage Protection.
Pr.
