AP3509 100 to 3500 Mhz TO-8 Cascadable Amplifier

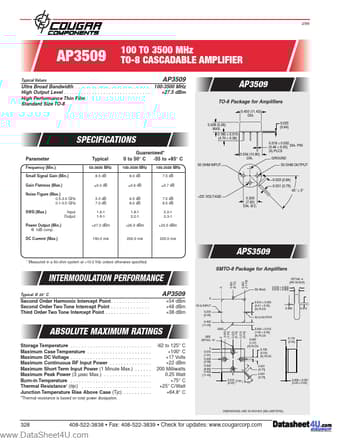

( DataSheet : www.DataSheet4U.com ) 2/99 AP3509 Typical Values 100 TO 3500 MHz TO-8 CASCADABLE AMPLIFIER AP3509 Ultra Broad Bandwidth . . . . . . . . . . . . . . . . . . . . . . . . . . . 100-3500 MHz High Output Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . +27.5 dBm High Performance Thin Film Standard Size TO-8 AP3509 TO-8 Package for Amplifiers 0.450 (11.43) DIA. 0.208 (5.28) MAX. 0.025 (0.64) SPECIFICATIONS Parameter Frequency (Min.) Small Signal Gain (Min.) Gain .

AP3509 Datasheet (186.76 KB)

AP3509 Datasheet Preview — Preview of AP3509 PDF

Datasheet Details

Part number:

AP3509

Manufacturer:

Cougar Components

File Size:

186.76 KB

Description:

100 to 3500 mhz to-8 cascadable amplifier.
