BL3702 Datasheet - BELLING

12MHZ Low Noise Opamps

BL3702 Features

* Single-Supply Operation from +2.1V ~ +5.5V

* Low Noise : 6.5nV/√Hz @1kHz

* Gain-Bandwidth Product: 12MHz (Typ)

* Low Input Bias Current: 1pA (Typ)

* Low Offset Voltage: 0.25mV (Typ)

* High Slew Rate: 11V/μs

* Quiescent Current: 1.1mA per Ampl

BL3702 General Description

BL370X series operates from a single 2.1V to 5.5V supply or dual ±1.05V to ±2.75V supplies ,The BL370X have a high gainbandwidth product of 12MHz, a slew rate of 11V/μs, and a quiescent current of 1.1mA per amplifier at 5V. The BL370X are designed to provide optimal performance in low voltage and lo.

BL3702 Datasheet (716.04 KB)

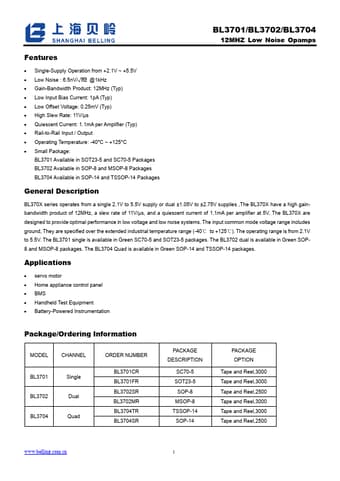

BL3702 Datasheet Preview — Preview of BL3702 PDF

Datasheet Details

Part number:

BL3702

Manufacturer:

BELLING

File Size:

716.04 KB

Description:

12mhz low noise opamps.
