BL3704, BL3701 Datasheet - BELLING

BL3704, BL3701, 12MHZ Low Noise Opamps

BL3701/BL3702/BL3704 12MHZ Low Noise Opamps .
BL370X series operates from a single 2.

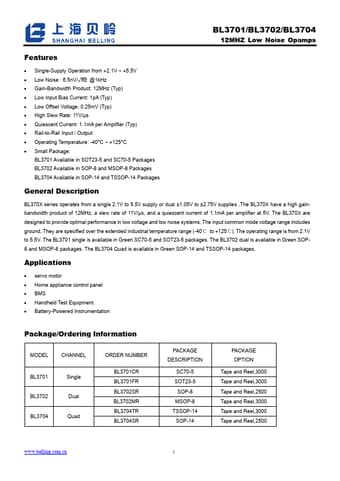

datasheet Preview Page 1 from Datasheet4u.com

BL3701-BELLING.pdf

BL3704 Datasheet Preview — This datasheet PDF includes multiple part numbers: BL3704, BL3701. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BL3704, BL3701

Manufacturer:

BELLING

File Size:

716.04 KB

Description:

12MHZ Low Noise Opamps

Note:

This datasheet PDF includes multiple part numbers: BL3704, BL3701.
Please refer to the document for exact specifications by model.

Features

* Single-Supply Operation from +2.1V ~ +5.5V
* Low Noise : 6.5nV/√Hz @1kHz
* Gain-Bandwidth Product: 12MHz (Typ)
* Low Input Bias Current: 1pA (Typ)
* Low Offset Voltage: 0.25mV (Typ)
* High Slew Rate: 11V/μs
* Quiescent Current: 1.1mA per Ampl

Applications

* servo motor
* Home appliance control panel
* BMS
* Handheld Test Equipment
* Battery-Powered Instrumentation Package/Ordering Information MODEL CHANNEL BL3701 BL3702 BL3704 Single Dual Quad ORDER NUMBER BL3701CR BL3701FR BL3702SR BL3702MR BL3704TR BL37
