AT0067 ADSL Transformer

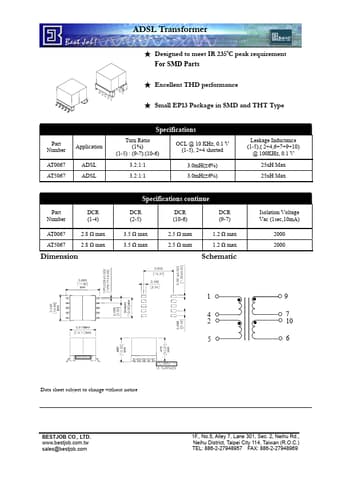

ADSL Transformer ★ Designed to meet IR 2350C peak requirement For SMD Parts ★ Excellent THD performance ★ Small EP13 Package in SMD and THT Type Part Number Application AT0067 AT5067 ADSL ADSL Specifications Turn Ratio (1%) (1-5) : (9-7):(10-6) OCL @ 10 KHz, 0.1 V (1-5), 2+4 shorted 3.2:1:1 3.2:1:1 3.0mH(±6%) 3.0mH(±6%) Leakage Inductance (1-5),( 2+4,6+7+9+10) @ 100KHz, 0.1 V 25uH Max 25uH Max Part Number DCR (1-4) AT0067 2.8 Ω max AT5067 2.8 Ω max Dimension Specifications con.

AT0067 Datasheet (201.72 KB)

AT0067 Datasheet Preview — Preview of AT0067 PDF

Datasheet Details

Part number:

AT0067

Manufacturer:

BESTJOB

File Size:

201.72 KB

Description:

Adsl transformer.
