AT006N3-01 - GaAs 30 dB IC Voltage Variable Dual Control Attenuator DC-6 GHz

AT006N3-01 Description

GaAs 30 dB IC Voltage Variable Dual Control Attenuator DC *6 GHz AT006N3-01, AT006N3-10 .
The AT006N3-01 is a GaAs IC FET non-reflective bridged “T” attenuator that provides over 30 dB of “matched” attenuation.

AT006N3-01 Features

* I Dual Control Voltages I Low Insertion Loss I 7 Lead Hermetic Package I Capable of Meeting MIL-STD Requirements5 -01 0.220 (5.59 mm) 0.210 (5.33 mm) 0.063 (1.60 mm) TYP. 0.130 (3.30 mm) TYP. 0.130 (3.30 mm) TYP. 0.268 (6.81 mm) 0.252 (6.40 mm) 0.45 (1.14 mm) TYP. 0.160 (4.06 mm) 0.120 (3.05 mm) 0

AT006N3-01 Applications

* Electrical Specifications at 25°C Parameter1 Insertion Loss2 Frequency4 DC
* 1.0 GHz DC
* 2.0 GHz DC
* 4.0 GHz DC
* 6.0 GHz DC
* 1.0 GHz DC
* 2.0 GHz DC
* 4.0 GHz DC
* 6.0 GHz DC
* 2.0 GHz DC
* 4.0 GHz DC
* 6.0 GHz 30 29 26 25 Min.

📥 Download Datasheet

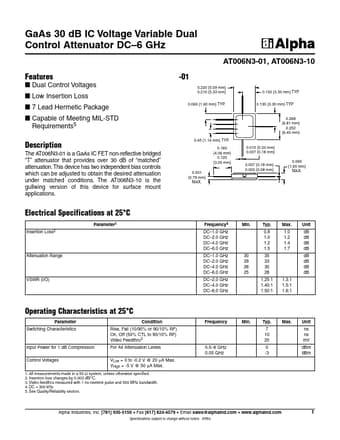

Preview of AT006N3-01 PDF
