HT0018 Datasheet - BESTJOB

HT0018 10/100 Single Port Transformer Modules

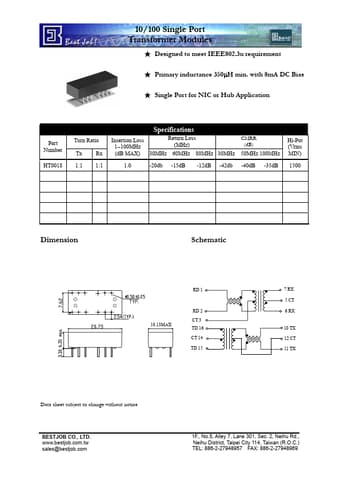

10/100 Single Port Transformer Modules ★ Designed to meet IEEE802.3u requirement ★ Primary inductance 350µH min. with 8mA DC Bias ★ Single Port for NIC or Hub Application Part Number HT0018 Turn Ratio Tx Rx 1:1 1:1 Insertion Loss 1~100MHz (dB MAX) Specifications Return Loss (MHz) 30MHz 60MHz 80MHz 30MHz CMRR (dB) 50MHz 100MHz 1.0 -20db -15dB -12dB -42db -40dB -35dB Hi-Pot (Vrms MIN) 1500 Dimension Schematic 10.13MAX RD 1 RD 2 CT 3 TD 16 CT 14 TD 15 7 RX 5 CT 6 RX 10 TX 12 CT 11 TX .

HT0018 Datasheet (169.39 KB)

HT0018 Datasheet Preview — Preview of HT0018 PDF

Datasheet Details

Part number:

HT0018

Manufacturer:

BESTJOB

File Size:

169.39 KB

Description:

10/100 single port transformer modules.
