Datasheet Details
- Part number
- HT03A
- Manufacturer
- HTCSEMI
- File Size
- 534.46 KB
- Datasheet
- HT03A-HTCSEMI.pdf
- Description
- Microtriggered low power thyristor

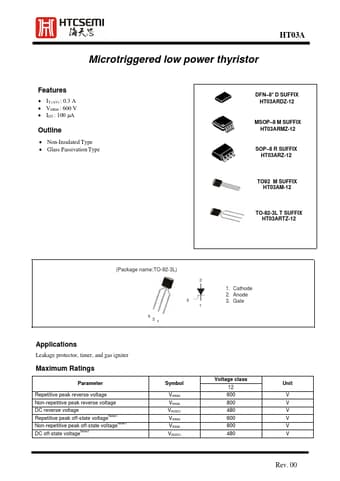

HT03A Description
Microtriggered low power thyristor HT03A .
HT03A Features
* IT (AV) : 0.3 A
* VDRM : 600 V
* IGT : 100 A
Outline
* Non-Insulated Type
* Glass Passivation Type
DFN
* 8
* D SUFFIX HT03ARDZ-12
MSOP
* 8 M SUFFIX HT03ARMZ-12
SOP
* 8 R SUFFIX HT03ARZ-12
TO92 M SUFFIX HT03AM-12
TO-92-3L T SUFFIX HT03ARTZ-12
(Package nam
HT03A Applications
* Leakage protector, timer, and gas igniter
Maximum Ratings
Parameter
Repetitive peak reverse voltage Non-repetitive peak reverse voltage DC reverse voltage Repetitive peak off-state voltageNote1 Non-repetitive peak off-state voltageNote1 DC off-state voltageNote1
Symbol
VRRM VRSM VR(DC) VDRM VDSM VD
