2SB772T - Silicon PNP transistor

2SB772T Description

2SB772T Rev.E Mar.-2016 DATA SHEET / .
SOT-89 PNP 。Silicon PNP transistor in a SOT-89 Plastic Package.

2SB772T Applications

* 3 ,,。 Output stage of 3 watts audio amplifier, regulator, DC-DC converter and relay driver.  / Equivalent Circuit / Pinning
* 1 2 3 PIN1：Base PIN 2：Collector / Marking hFE Classifications Symbol hFE Range Marking R 60～120 H72R PIN 3：Emitter Q

📥 Download Datasheet

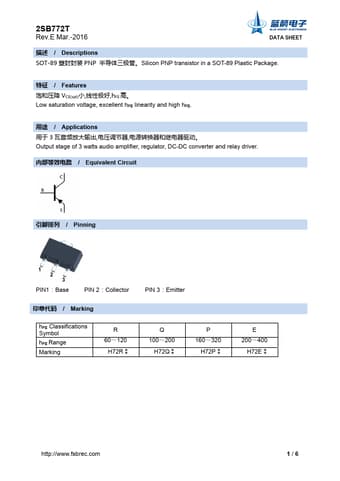

Preview of 2SB772T PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SB772T
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.54 MB
Datasheet
2SB772T-BLUEROCKETELECTRONICS.pdf
Description
Silicon PNP transistor
