Part number:
2SC4081W
Manufacturer:
BLUE ROCKET ELECTRONICS
File Size:
666.47 KB
Description:
Silicon npn transistor.

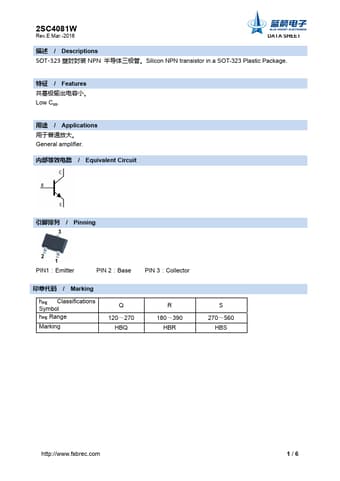

* 。 Low Cob. / Applications 。 General amplifier. / Equivalent Circuit / Pinning 3 2 1 PIN1:Emitter PIN 2:Base PIN 3:Collector / Marking hFE Classifications Symbol hFE Range Marking Q 120~270 HBQ R 180~390 HBR S 270~560 HBS http://www.fsbrec.com 1/6 2SC4081W Rev.E Mar.-2016 / Absolut
2SC4081W Datasheet (666.47 KB)
2SC4081W
BLUE ROCKET ELECTRONICS
666.47 KB
Silicon npn transistor.
