2SC4081-B - NPN Transistor

Product Overview

MCC

Part number	2SC4081-B
Manufacturer	MCC
File Size	234.49 KB
Description	NPN Transistor
Datasheet	2SC4081-B Datasheet
Note	This datasheet PDF includes multiple part numbers: 2SC4081-B, 2SC4081-A. Please refer to the document for exact specifications by model.

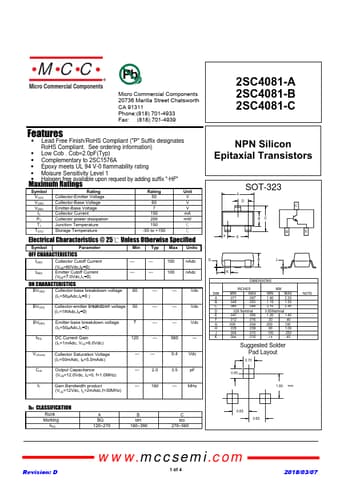

Additional preview pages of the 2SC4081-B datasheet.

Lead Free Finish/RoHS Compliant ("P" Suffix designates RoHS Compliant. See ordering information).
Low Cob . Cob=2.0pF(Typ).
Complementary to 2SC1576A.
Epoxy meets UL 94 V-0 flammability rating.
Moisure Sensitivity Level 1.
Halogen free available upon request by adding suffix "-HF" Maximum Ratings Symbol VCEO VCBO VEBO IC PC TJ TSTG Rating Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current Collector powe.
