2SC5343S Datasheet - BLUE ROCKET ELECTRONICS

2SC5343S, Silicon NPN transistor

2SC5343S Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

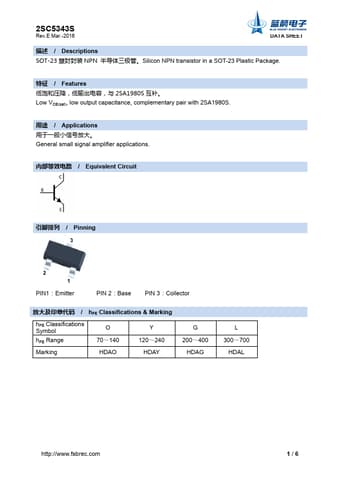

datasheet Preview Page 1 from Datasheet4u.com

2SC5343S-BLUEROCKETELECTRONICS.pdf

2SC5343S Datasheet Preview — Preview of 2SC5343S PDF

Datasheet Details

Part number:

2SC5343S

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

0.96 MB

Description:

Silicon NPN transistor

Applications

* 。 General small signal amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range O 70～140 Y 120～240 Marking HDAO HDAY G 200～400 HDAG L 300～700 HDAL http://www. fsbrec. com
