2SD1803 - Silicon NPN transistor

Datasheet Summary

Description

TO-252 NPN 。Silicon NPN transistor in a TO-252 Plastic Package.

Features

，，fT ，，。 Low VCE(sat), high current and high fT, excellent linearity of hFE, fast switching time. /.

BLUE ROCKET ELECTRONICS

📥 Download Datasheet

Datasheet Details

Part number	2SD1803
Manufacturer	BLUE ROCKET ELECTRONICS
File Size	0.98 MB
Description	Silicon NPN transistor
Datasheet	2SD1803 Datasheet
Additional preview pages of the 2SD1803 datasheet.

📁 Similar Datasheet

2SD1803 - NPN Transistors (Kexin)
2SD1803 - NPN Epitaxial Planar Silicon Transistors (GME)
2SD1803 - Bipolar Transistor (ON Semiconductor)
2SD1803 - PNP/NPN Epitaxial Planar Silicon Transistors (Sanyo Semicon Device)
2SD1803 - TO-126 Silicon NPN Power Transistor (Inchange Semiconductor)
2SD1803 - NPN EPITAXIAL SILICON TRANSISTOR (UTC)
2SD1803 - TO-252 NPN Transistor (INCHANGE)
2SD180 - Silicon NPN Power Transistor (Inchange Semiconductor)
2SD1800 - NPN Epitaxial Silicon Transistor (Sanyo Semicon Device)
2SD1801 - Bipolar Transistor (ON Semiconductor)

Other Datasheets by BLUE ROCKET ELECTRONICS

2SD1803I - Silicon NPN transistor
2SD1804 - Silicon NPN transistor
2SD1818 - Silicon NPN transistor
2SD1819A - Silicon NPN transistor
2SD1833 - Silicon NPN transistor
2SD1857 - Silicon NPN transistor
2SD1857D - Silicon NPN transistor
2SD1858 - Silicon NPN transistor

Full PDF Text Transcription

Click to expand full text

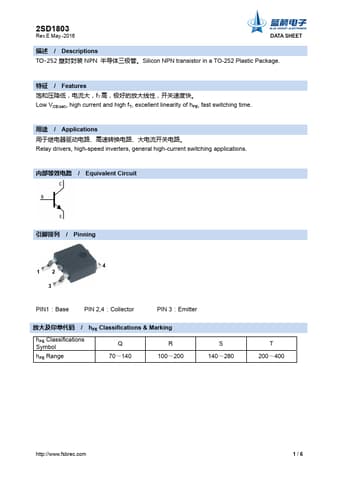

2SD1803 Rev.E May.-2016 DATA SHEET / Descriptions TO-252 NPN 。Silicon NPN transistor in a TO-252 Plastic Package. / Features ，，fT ，，。 Low VCE(sat), high current and high fT, excellent linearity of hFE, fast switching time. / Applications 、、。 Relay drivers, high-speed inverters, general high-current switching applications. / Equivalent Circuit / Pinning 12 3 4 PIN1：Base PIN 2,4：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 70～140 R 100～200 S 140～280 T 200～400 http://www.fsbrec.com 1/6 2SD1803 Rev.E May.

Published: Sep 2, 2017 |
