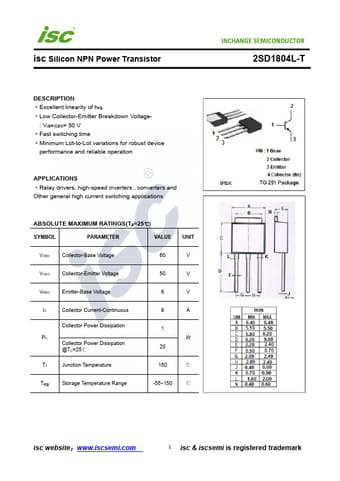

2SD1804L-T Datasheet, Transistor, INCHANGE

PDF File Details

Part number:

2SD1804L-T

Manufacturer:

INCHANGE

File Size:

201.66kb

Download:

📄 Datasheet

Description:

Npn transistor.

Excellent linearity of hFE

Low Collector-Emitter Breakdown Voltage- : V(BR)CEO= 50 V

Fast switching time <

2SD1804L-T Application

• Applications
• Relay drivers, high-speed inverters , converters and Other general high current switching applications ABSOLUTE MAXIMUM RATIN
