2SD1804 - Silicon NPN transistor

2SD1804 Description

2SD1804 Rev.E May.-2016 DATA SHEET / .
TO-252 NPN 。Silicon NPN transistor in a TO-252 Plastic Package.

2SD1804 Applications

* 、、。 Relay drivers, high-speed inverters, general high-current switching applications. / Equivalent Circuit / Pinning 12 3 4 PIN1：Base PIN 2,4：Collector PIN 3：Emitter / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 70～140 R 100～200 S 140～280 T 200～400 http://w

📥 Download Datasheet

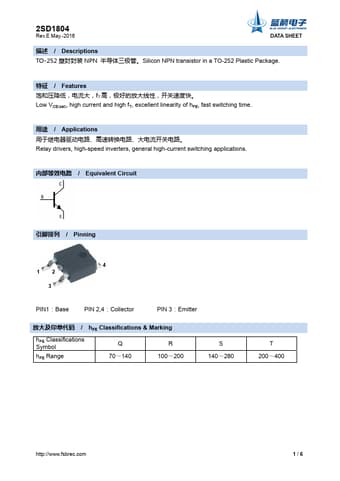

Preview of 2SD1804 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD1804
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
1.08 MB
Datasheet
2SD1804-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
