2SD601A - Silicon NPN transistor

2SD601A Description

2SD601A Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

2SD601A Applications

* 。 General power amplifier applications / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range Q 160-260 R 210-340 Marking H1ZQ H1ZR S 290-460 H1ZS http://www. fsbrec. com 1/6 2SD601A Rev. E Mar

📥 Download Datasheet

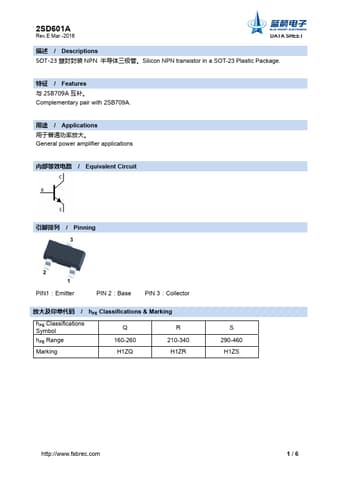

Preview of 2SD601A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SD601A
Manufacturer
BLUE ROCKET ELECTRONICS
File Size
860.69 KB
Datasheet
2SD601A-BLUEROCKETELECTRONICS.pdf
Description
Silicon NPN transistor
