2SD60 - NPN Transistor

2SD60 Description

isc Silicon NPN Power Transistor INCHANGE Semiconductor 2SD60 .
Collector-Emitter Sustaining Voltage- : VCEO(SUS) = 75V(Min). Excellent Safe Operating Area. High Current Capability. Minimum Lot-to-.

2SD60 Applications

* Designed for power amplifier and switching applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 150 V VCEO Collector-Emitter Voltage 75 V VEBO Emitter-Base Voltage 6 V IC Collector Current-Continuous 6 A ICM Collector Curren

📥 Download Datasheet

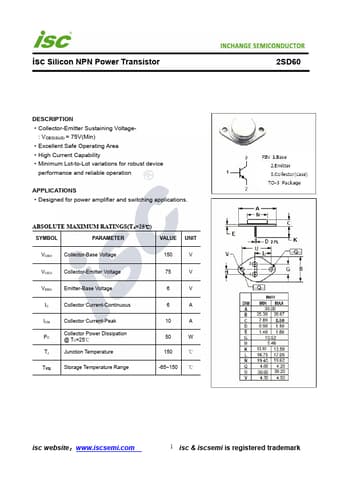

Preview of 2SD60 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SD60
Manufacturer
INCHANGE
File Size
189.68 KB
Datasheet
2SD60-INCHANGE.pdf
Description
NPN Transistor
