2SD602A, 2SD602, Silicon NPN transistor

2SD602(A) Rev.E Mar.-2016 DATA SHEET / .
SOT-23 NPN 。Silicon NPN transistor in a SOT-23 Plastic Package.

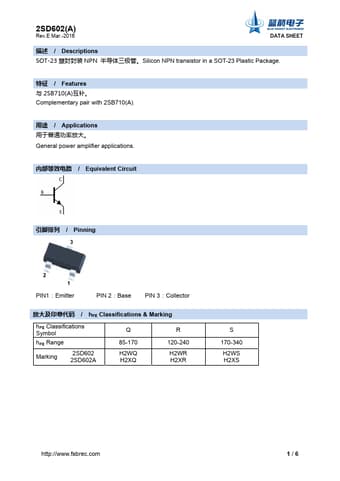

datasheet Preview Page 1 from Datasheet4u.com

2SD602-BLUEROCKETELECTRONICS.pdf

2SD602A Datasheet Preview — This datasheet PDF includes multiple part numbers: 2SD602A, 2SD602. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

2SD602A, 2SD602

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

702.36 KB

Description:

Silicon NPN transistor

Note:

This datasheet PDF includes multiple part numbers: 2SD602A, 2SD602.
Please refer to the document for exact specifications by model.

Applications

* 。 General power amplifier applications. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range Marking 2SD602 2SD602A Q 85-170 H2WQ H2XQ R 120-240 H2WR H2XR S 170-340 H2WS H2XS http://www. fsb
