BC859, Silicon PNP transistor

BC859 Rev.E Mar.-2016 DATA SHEET / .
SOT-23 PNP 。Silicon PNP transistor in a SOT-23 Plastic Package.

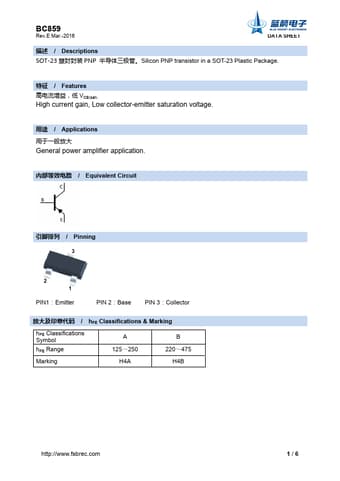

datasheet Preview Page 1 from Datasheet4u.com

BC859-BLUEROCKETELECTRONICS.pdf

BC859 Datasheet Preview — Preview of BC859 PDF

Datasheet Details

Part number:

BC859

Manufacturer:

BLUE ROCKET ELECTRONICS

File Size:

892.86 KB

Description:

Silicon PNP transistor

Applications

* General power amplifier application. / Equivalent Circuit / Pinning 3 2 1 PIN1：Emitter PIN 2：Base PIN 3：Collector / hFE Classifications & Marking hFE Classifications Symbol hFE Range A 125～250 B 220～475 Marking H4A H4B http://www. fsbrec. com 1/6 BC859 Rev. E Mar. -2016 / Absolute M
