BC859A, BC856 PNP Silicon Epitaxial Transistors

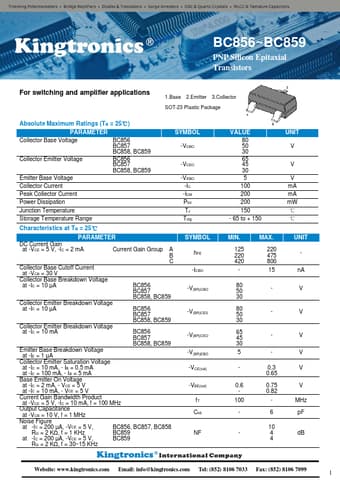

📥 Download Datasheet Datasheet Preview Page 1

Description

BC856~BC859 PNP Silicon Epitaxial Transistors For switching and amplifier applications 1.Base 2.Emitter 3.Collector SOT-23 Plastic Package Absolute.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: BC859A, BC856. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
BC859A, BC856
Manufacturer
Kingtronics
File Size
394.70 KB
Datasheet
BC856-Kingtronics.pdf
Description
PNP Silicon Epitaxial Transistors
Note
This datasheet PDF includes multiple part numbers: BC859A, BC856.
Please refer to the document for exact specifications by model.

Applications

* 1.Base 2.Emitter 3.Collector SOT-23 Plastic Package Absolute Maximum Ratings (Ta = 25℃) PARAMETER SYMBOL Collector Base Voltage BC856 BC857 BC858, BC859 -VCBO Collector Emitter Voltage BC856 BC857 BC858, BC859 -VCEO Emitter Base Voltage -VEBO Collector Current -IC Peak Collector Curre
